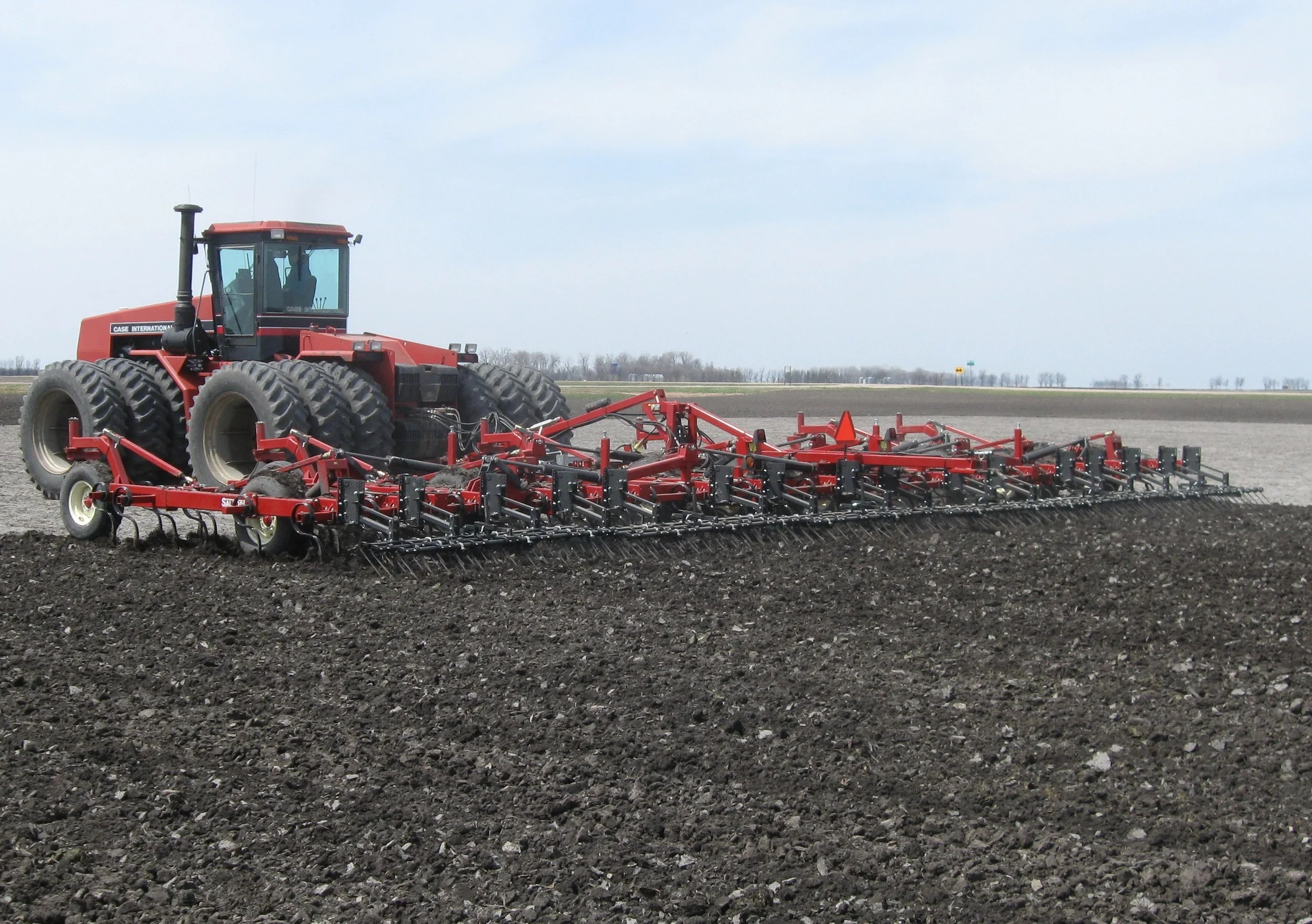

700 S-Tine, two-piece S-tine, and C-shank Cultivators
Strength, durability, and performance are standard features on Salford field cultivators. Unique features like hydraulic self leveling and the land-hugger fully floating frame are found only on Salford cultivators. Hydraulic self-leveling frames are standard on all models. Fewer hinge points greatly reduce wear on Salford cultivators lowering maintenance costs over the life of these durable machines.
The stiffer tine increases the stir and vibration of Salford S-tine equipment for improved leveling and commodity incorporation.
Features
Standard Features:
Tandem wheels on main frame and wings
Adjustable tip pressure to 270 lbs on C-shank models
110 lbs - 200 lbs operating pressure (S-Tine tip pressure varies during operation as the tine vibrates in the soil)
Manual adjustable gauge wheels on primary wing only (40’ - 44’)
Manual adjustable gauge wheels on primary and secondary wings (50’ and up)
Category 4 single clevis hitch
Hydraulic self-leveling frame
Single point hydraulic depth control
Safety chain, SMV sign, safety lights
Options:
Land-hugger floating frame with manual adjust caster wheels
Adjustable tow hitch (one-man hook-up)
Hydraulic lines and quick coupler to tow hitch
Specifications
| 700 Field Cultivators | |||
|---|---|---|---|
| Working Width | 6-Bar S-Tine & 2 Piece S-Tine models |
C-shank Models |
H.P. Required |
| 4.5" Tine spacing with Long Life Cast Point # of Tines |
7" Shank spacing with 7" sweeps # of Tines |
||
| 40' (12.19 m) | N/A | 68 | 210-250 |
| 44' (13.41 m) ** | 116 | 75 | 220-260 |
| 50' (15.24 m) ** | 132 | 85 | 250-300 |
| 62' (18.90 m) ** | 164 | 104 | 310-400 |
| **Bi-fold Frame, See Dealer or Call Salford for Transport Specs and Weights | |||
| Operation and Application | S-Tine | C-Shank |
|---|---|---|
| Operating Depth | 1.5" - 4" (0.04 m - 0.10 m) | 2" - 6" (0.05 m - 0.15 m) |
| Operating Speed | 5.5 - 9 mph (8.85 - 14.48 kph) | 4.5 - 7 mph (7.24 - 11.27 kph) |
| % of Residue Bured in one pass | 20 - 30 | 40 - 50 |
| Seed Bed Preparation | Excellent | Excellent |
| Primary Tillage | Poor | Average |
| Field Leveling | Excellent | Excellent |
| Weed Control | Excellent | Excellent |
| Incorporation of Chemical/Fertilizer | Excellent | Excellent |
| Residue Management | Average | Good |
| Surface Compaction Removal | Excellent | Excellent |
| Deep Compaction Removal (12"+) | N/A | N/A |
| Land Reclamation | Poor | Average |
